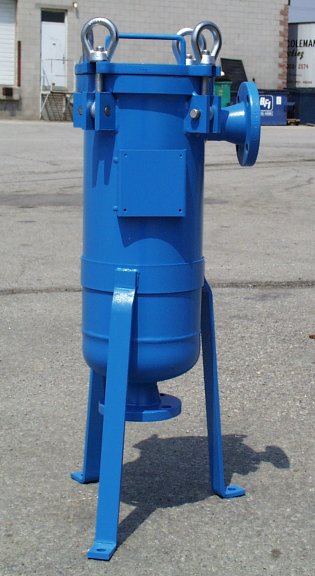

Bag Filter Housings

Filter Bag Housings are compact, space saving and designed for optimum filtration performance. The range provides filtration solutions for a broad variety of fluid applications in the process industry using bag filter technology. Filter Bag Housings are manufactured in accordance to meet the high demands of the process industries.

They can be used in processing chemicals, petroleum derivatives, coolants, cutting oils, cleaning fluids, waxes, paints, inks, resins, varnishes, lacquers, pharmaceuticals, plasticisers, plastisols, food stuffs, vegetable oils and edible oils. They are particularly useful for filtering large volumes of high viscosity liquids.

Equipment Connections can be NPT, BSP and ASA screwed or flanged in the different configurations to suit the customer's requirements. All bag filters vessels are compatible with all standard snap ring filter bags as well as our other custom designed bags. These can be supplied in single or multiple bags in a vessel assembly.

Features include:

low pressure drop design
high flow rates
positive bag seal
adjustable legs on single bag filters
permanent legs on multi-bag filters
economic filtration
secure quick release housing closure
available in carbon or stainless steel
construction (other alloys on special order)
simple and rapid changeout of bags
flow rates from 25 to 3000 gallons/min
full range of sizes
accepts both rigid ring snapband bags
custom design service
multiple and duplex systems available
polished, glass bead blasted or paint
coated externals

Specifications:

Model Number	Number of Filter Bags	Bag Code	Inlet & Outlet sizes	Max Flow Rate GPM
CF-50	1	P4S	1-1/2"	40
CF-100	1	P1S	2"	90
CF-200	1	P2S	2"	180
CF-400	2	P2S	3"	360
